Jinhai Anti-static Vinyl Flooring

Jinhai Anti-static Vinyl Flooring 03

About the Jinhai Brand

Jinhai Static, a subsidiary of SWANFLOR Group, established in 1992 in Changzhou, China, is the first ESD (Electrostatic Discharge) flooring manufacturer in China. Under the "Swanflor" brand, Jinhai has become a leading manufacturer with an impressive annual capacity of 5 million m² and holds a large share of exports across China.

Comparison of Two Main Product Lines: TT and XYD

Jinhai offers two main product lines, TT and XYD. Both utilize advanced technology to create a conductive network at the interface of the plastic particles, but they have distinct characteristics as follows:

Criteria	TT Series (TT-8XX)	XYD Series (XYD-6XX)
Structure and Technology
PVC Content	25%	35% (higher grade)
Plasticizer	DOP (not permitted in Europe)	DOTP (environmentally friendly)
Conductive Carbon Source	Carbon black from China	Graphite carbon imported from Germany
Tempering Process	No	Yes (increases dimensional stability)
Technical Characteristics
Dimensional Stability	Lower	Excellent (-0.01%)
Surface Resistance (Conductive)	10⁴-10⁶ Ω	2.5*10⁴-10⁶ Ω
Surface Resistance (Static Dissipative)	10⁶-10⁹ Ω	10⁶-10⁹ Ω
FloorScore Certification	No	Yes
Abrasion Resistance	Type M (medium)	Type P (highest)
TVOC after 28 days	Higher	<10μg/m³
Aesthetics and Color
Common Codes	TT-801, TT-802, TT-805, TT-812, TT-813, TT-815	XYD-601, XYD-602, XYD-603, XYD-615, XYD-8638, XYD-8639
Color Characteristics	Brighter	Professional, neutral tones
Stone Pattern Design	Large-sized color flecks	Subtle, uniform color flecks
Suitable Applications
Environment	Commercial, office	Electronics industry, healthcare, cleanrooms
Certification Requirements	No CE or FloorScore required	Must meet international standards
Cost	More affordable	Premium
Certifications
CE	No	Yes
FloorScore	No	Yes (unique in China)

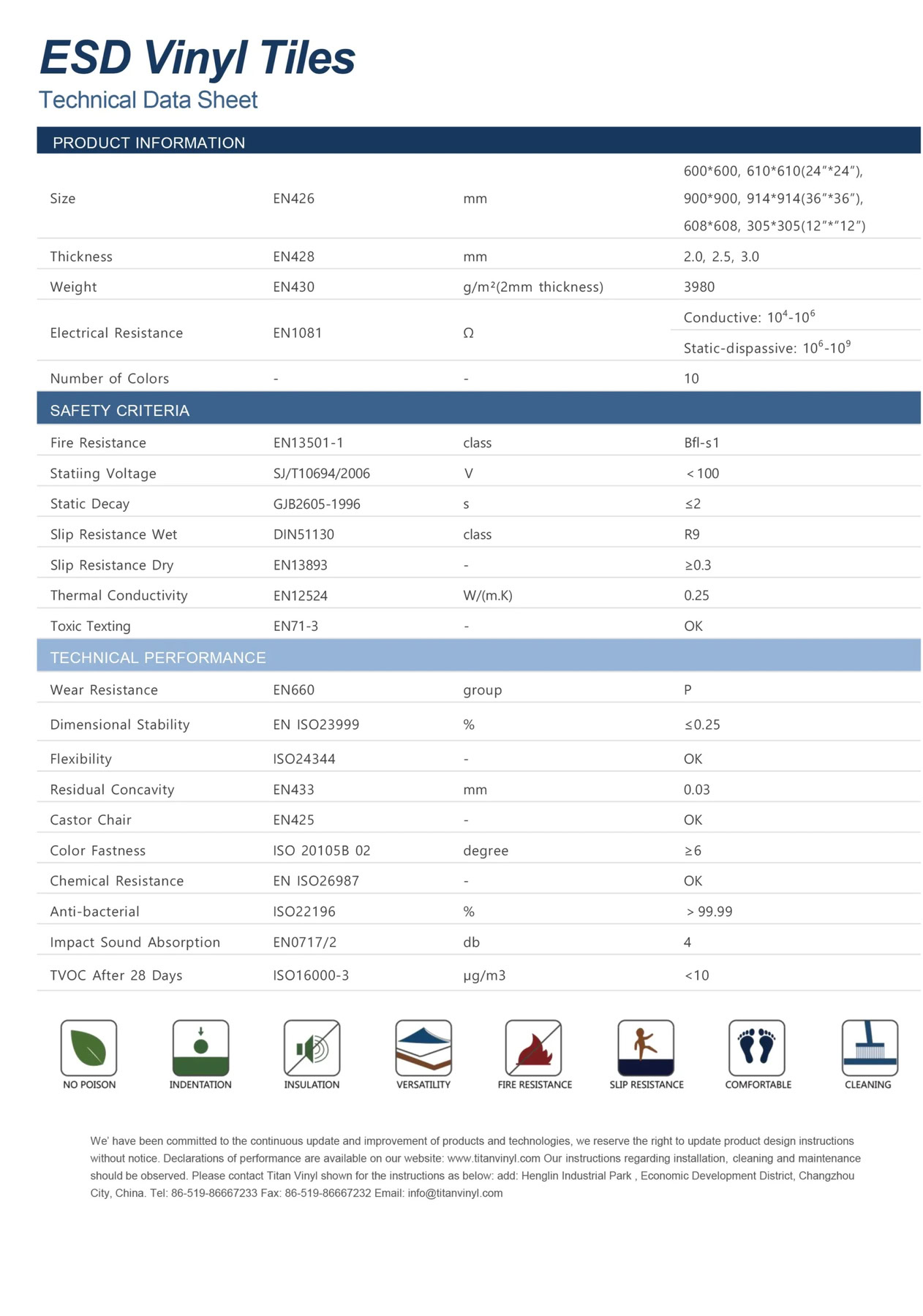

General Technical Specifications of Jinhai Anti-static Vinyl Flooring

Jinhai Anti-static Vinyl Flooring

Basic Specifications

• Standard Dimensions: 600×600mm, 610×610mm (24"×24"), 900×900mm
• Custom Order Dimensions: 305×305mm (12"×12"), 608×608mm, 914×914mm (36"×36")
• Thickness: 2.0mm, 2.5mm, 3.0mm
• Weight: 3980g/m² (2mm thickness)

General Technical Performance

• Static Voltage (SJ/T11236-2001): <100V
• Static Decay (GJB2605-1996): ≤2s
• Wet Slip Resistance (DIN51130): R9
• Dry Slip Resistance (EN13893): ≥0.3
• Thermal Conductivity (EN12524): 0.25 W/(m.K)
• Toxicity Test (EN71-3): Compliant
• Fire Resistance (EN13501-1): Bfl-s1
• Antibacterial (ISO22196): >99.99%
• Impact Sound Absorption (EN0717/2): 4db

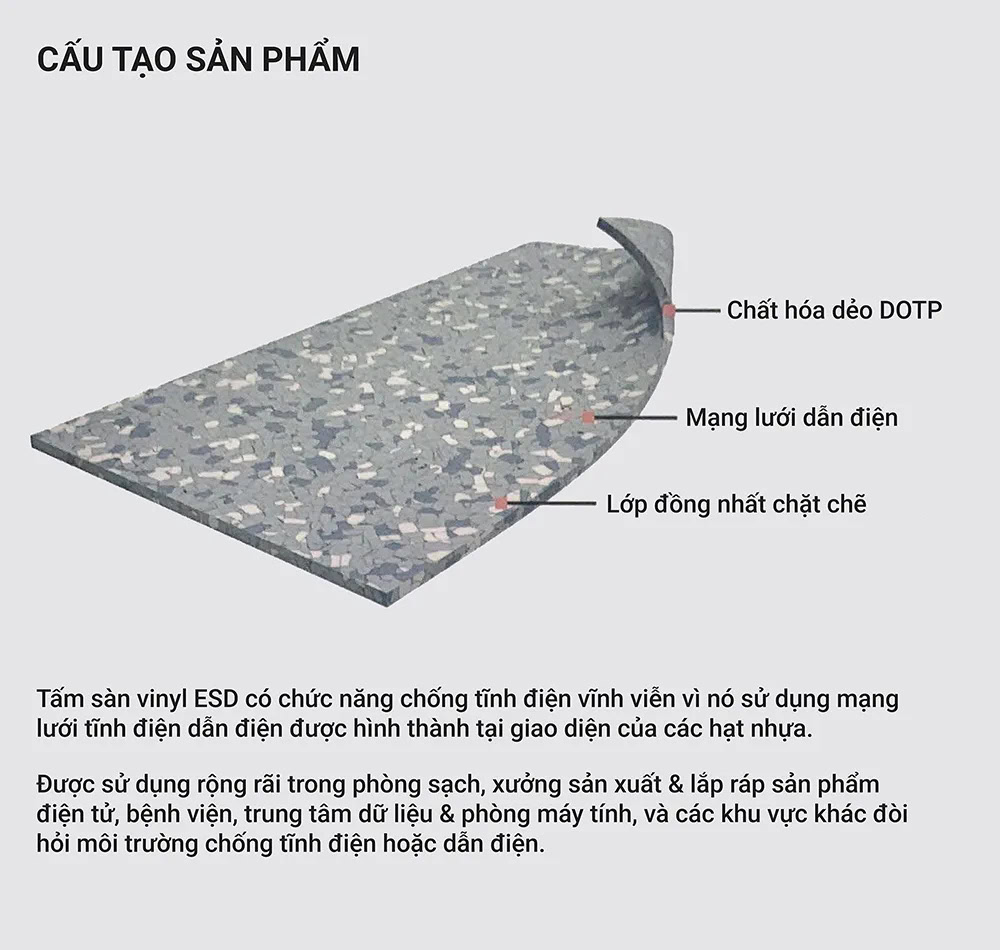

Structure of Jinhai Anti-static Vinyl Flooring

Both Jinhai's TT and XYD product lines have a main three-layer structure:

1. DOTP/DOP Plasticizer Layer: Provides softness and flexibility to the flooring plank
2. Conductive Network Layer: Dissipates static electricity, formed at the interface of plastic particles
3. Dense Homogeneous Layer: Ensures stability and durability of the flooring plank

This special structure allows Jinhai vinyl flooring to have permanent anti-static properties, without performance degradation over time like many other products on the market.

Structure of Jinhai Anti-static Vinyl Flooring

Typical Projects Using Jinhai Anti-static Vinyl Flooring

Jinhai anti-static vinyl flooring has been used in numerous large-scale projects globally:

• Samsung Electronics: Factories in Suzhou (120,000m²), Tianjing (90,000m²), Thai Nguyen, Vietnam (150,000m²), Noida, India (140,000m²)
• Foxconn Technology: Headquarters in Shenzhen (230,000m²), Factories in Wuhan (180,000m²), Weihai (160,000m²)
• Intel Semiconductor: Factory in Dalian (120,000m²)
• Sharp Electronics: Factories in Shanghai (30,000m²), Nanjing (280,000m²)
• 3M China: Factory (150,000m²)
• Flex Suzhou: Factory (50,000m²)
• Janssen Pharmaceuticals: Factory in Xi'an (24,000m²)
• Memsic Inc: Factory in Wuxi (360,000m²)

Guide to Choosing the Right Jinhai Vinyl Flooring Series

When to Choose the TT Series

• Limited project budget
• Aesthetic requirements are higher than technical requirements
• No CE or FloorScore certification needed
• Environments with moderate anti-static requirements

When to Choose the XYD Series

• High-end projects requiring optimal quality
• Environments demanding high dimensional stability
• Need to meet international certifications such as CE, FloorScore
• Environments sensitive to static electricity, such as semiconductor manufacturing and medical equipment
• Prioritize environmentally friendly and health-safe materials

Jinhai Anti-static Vinyl Flooring 04

Thien Ha Floor - Official Distributor of Jinhai in Vietnam

Thien Ha Floor is proud to be an official distributor of Jinhai anti-static vinyl flooring in Vietnam. We offer:

1. Professional Consultation: Assisting customers in choosing between the TT and XYD series to suit their specific needs
2. Genuine Products: Directly imported from the Jinhai factory
3. Diverse Selection: Providing a full range of colors and sizes for both product series
4. Comprehensive Solutions: From consultation and quotation to delivery and after-sales support
5. Genuine Warranty: Ensuring customer rights with a reliable warranty policy

Conclusion

Jinhai Anti-static Vinyl Flooring, with its TT and XYD product lines, offers comprehensive solutions for all static control needs, from general commercial applications to industrial and medical environments requiring stringent technical standards. Understanding the differences between these two product lines helps customers make optimal technical and economic choices for their projects. Whether you choose the TT or XYD series, Jinhai anti-static vinyl flooring remains a leading brand with over 30 years of industry experience, trusted by major technology corporations worldwide. Contact Thien Ha Floor via hotline 0909.192.557 today for detailed consultation on Jinhai's anti-static vinyl flooring series and to receive a quote tailored to your project.
