Xiangli Raised Access Floor

Xiangli Raised Access Floor is a premium anti-static flooring line manufactured by Xiangli Anti-static Decorative Material Co., Ltd - a brand with 28 years of experience and over 20 patents in the industrial raised floor sector.

Thien Ha Floor is the official distributor of Xiangli anti-static raised access floor in Vietnam. We commit to genuine products, full quality certifications, and international standard installation services for all projects.

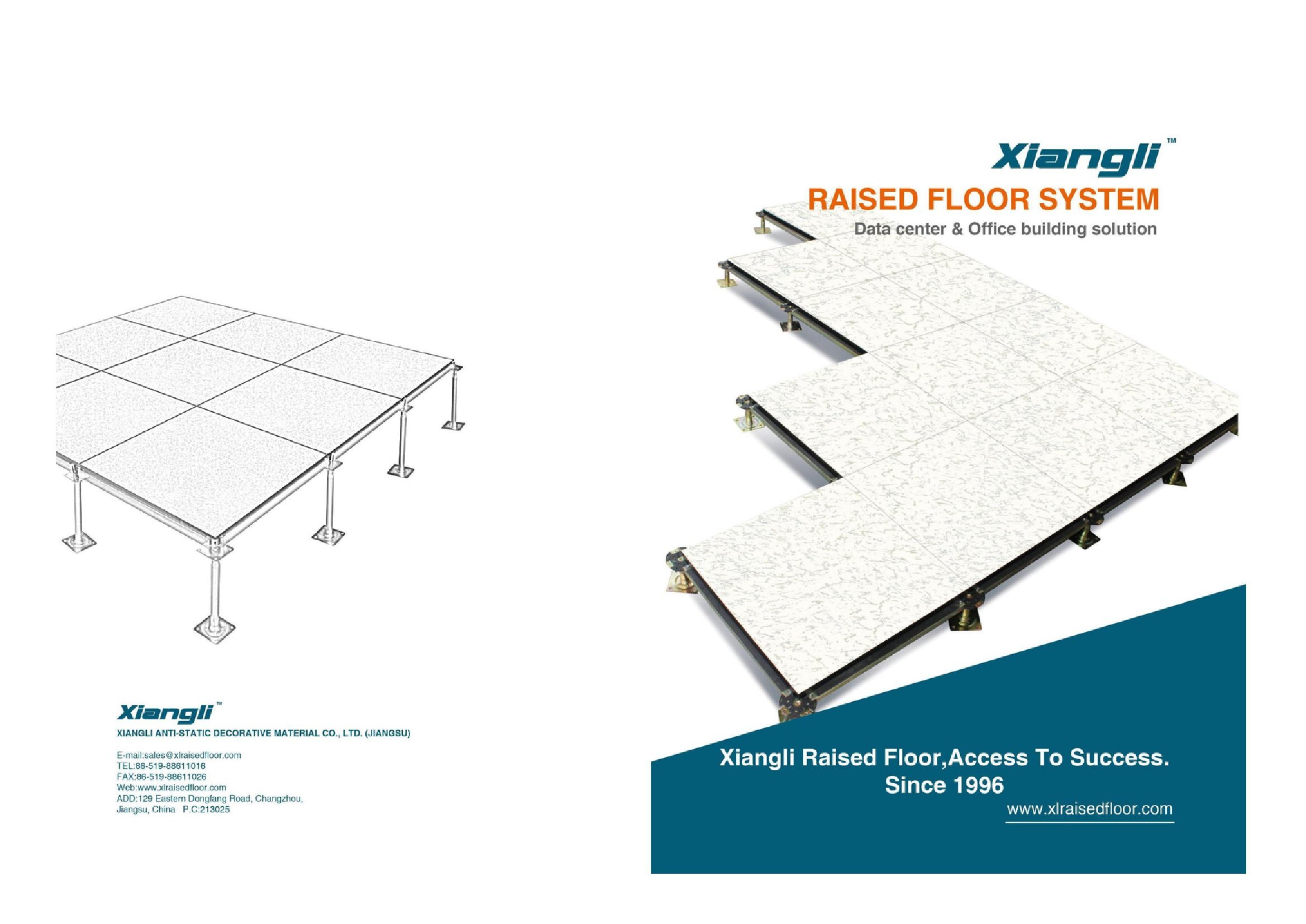

Raised Access Floor – Illustrative photo

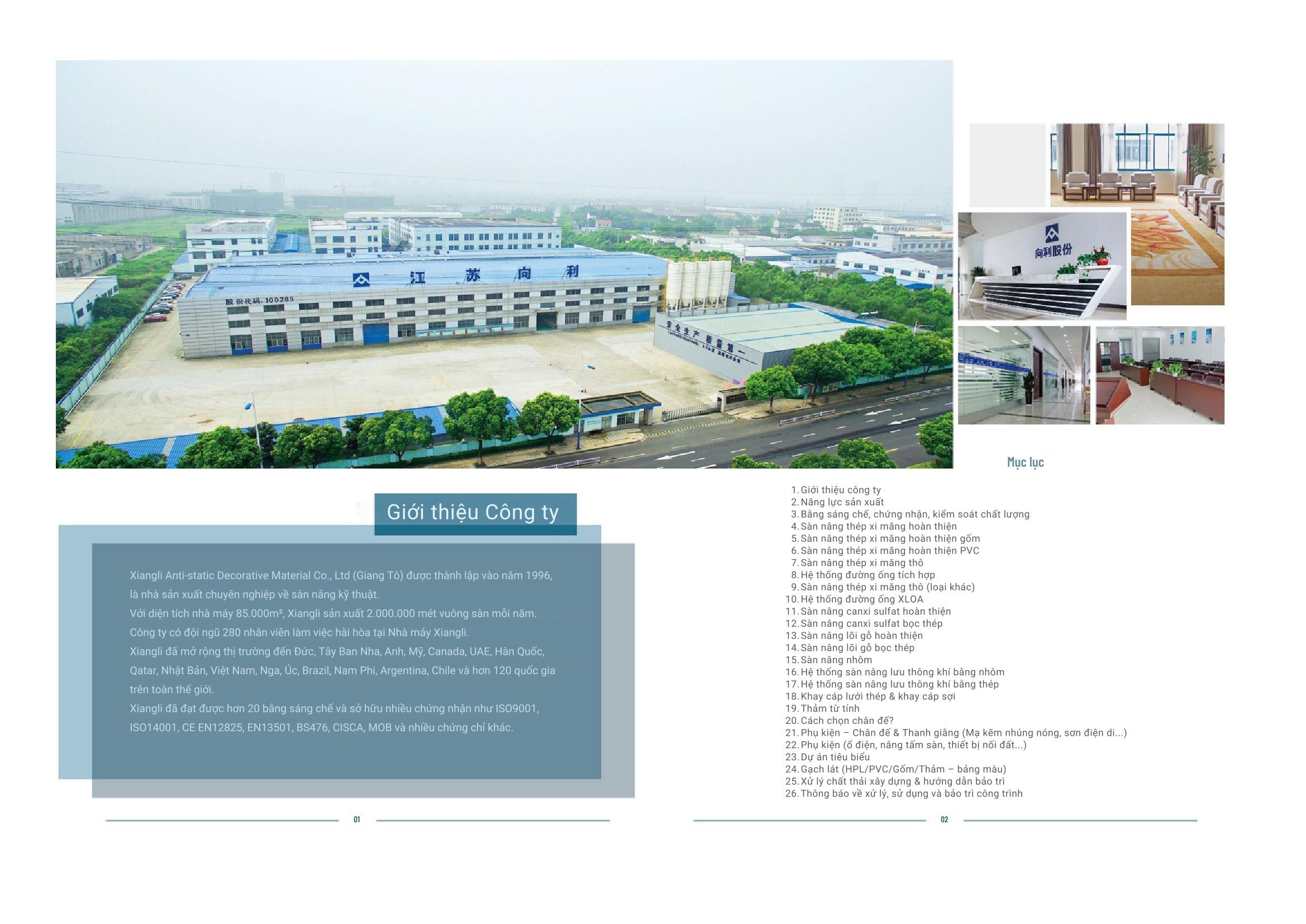

About the Xiangli Brand

History

Xiangli Anti-static Decorative Material Co., Ltd was established in 1996 in Jiangsu, China, and is a professional manufacturer of raised access floors with:

• Factory area: 85,000m²
• Capacity: 2,000,000 m²/year
• Team: 280 employees
• Market: Exported to over 120 countries (Germany, USA, UK, Japan, South Korea, UAE, Vietnam…)

Introduction to Xiangli

Scale and Patents

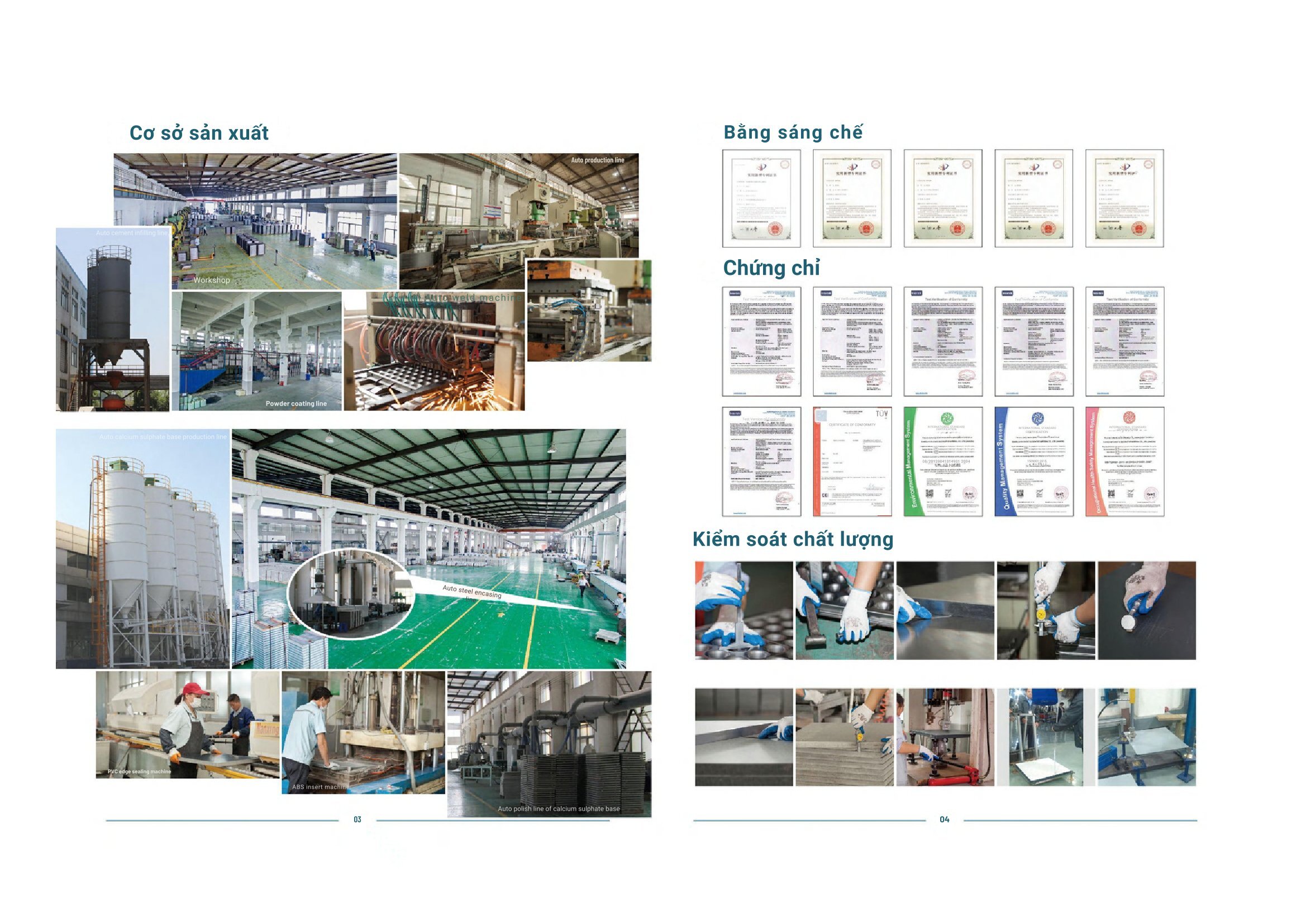

Quality Certifications

The Xiangli factory is equipped with a modern automated production line, ensuring stable product quality and high productivity. Xiangli raised access floors have a series of international certifications such as:

• ISO 9001:2015 – Quality Management System
• ISO 14001:2015 – Environmental Management System
• CE EN12825, EN13501, BS476 – European Standards
• CISCA, MOB – International Certifications

Technical Specifications of Xiangli Anti-static Raised Floor

Standard Dimensions

Load Capacity & Bearing Strength

Note: For most projects, the suitable load capacity is typically between FS800 to FS1500. Depending on the project's scale and equipment type, you will select a load within this range to ensure the system's durability and safety.

Contact Hotline 0909 192 557 for in-depth consultation and the latest full package quote!

Structure of Xiangli Anti-static Raised Access Floor

1. Panel – Main Structure

From inside to outside:

• ST14 Steel Panel (bottom): Embossed steel, providing rigidity to the entire floor panel
• SPC Steel (reinforcement frame): Cross steel frame for reinforcement, exclusive cross-rib design
• Lightweight Cement Layer (core): High-quality, lightweight cement core
• Adhesive: Industrial adhesive for strong bonding between core and surface
• Surface Finish Layer: HPL/PVC/Ceramic/Granite/Carpet (optional)
• Trim/Edge: Available in various types
  • Integral trim
  • C-trim edge
  • Black edge trim
  • 45 degree routed
  • Trim-less Panel

Cross-Rib Reinforcement Technology:

• Cross Load-Bearing Ribs: Increase load capacity by 10-30%, improve flatness by 10%, and enhance aesthetics
• Recessed Ribs: Reinforce load-bearing capacity at the panel edges, wider edges improve lateral load performance
• Curved/Flat Edges: Designed to optimize load-bearing capacity

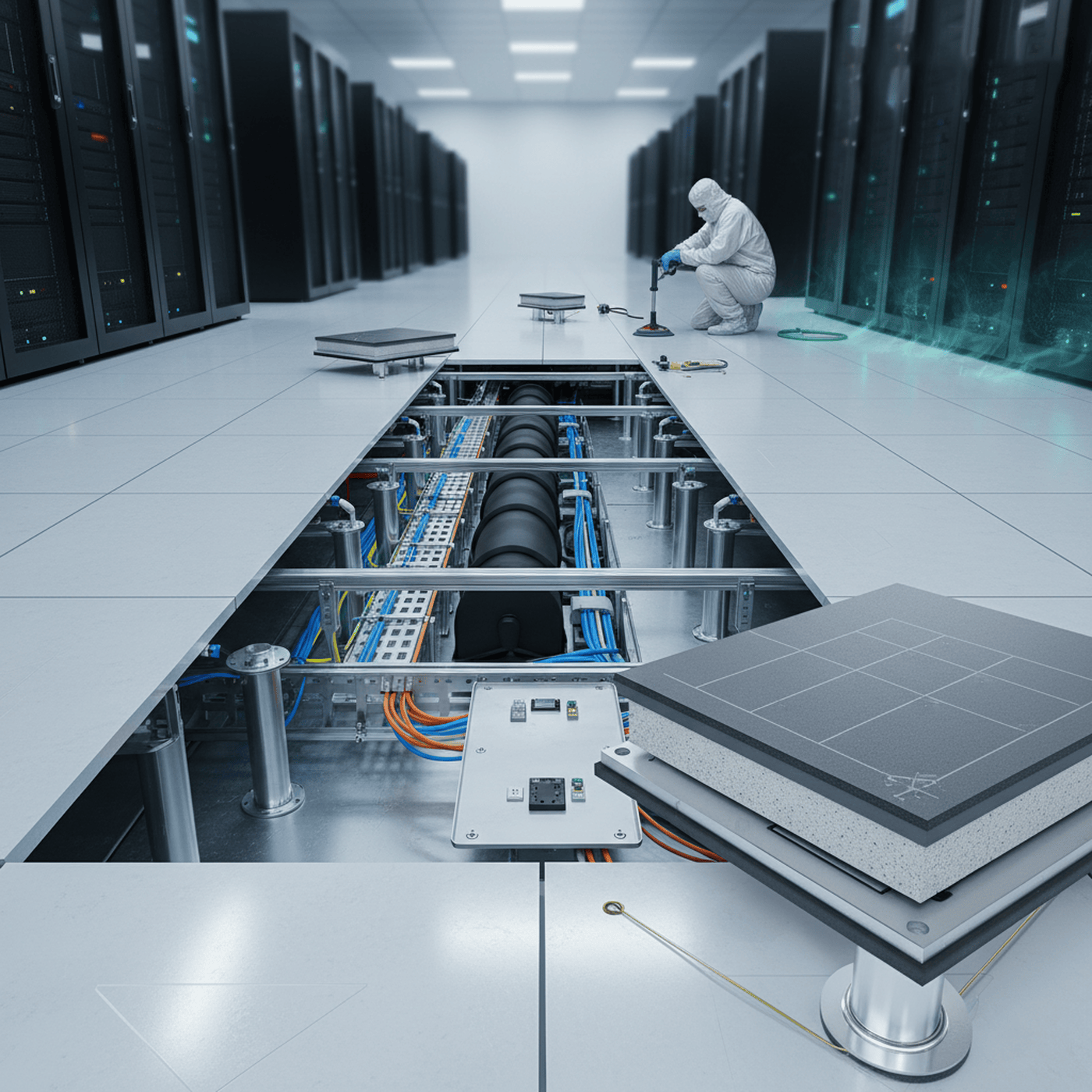

Xiangli Raised Access Floor

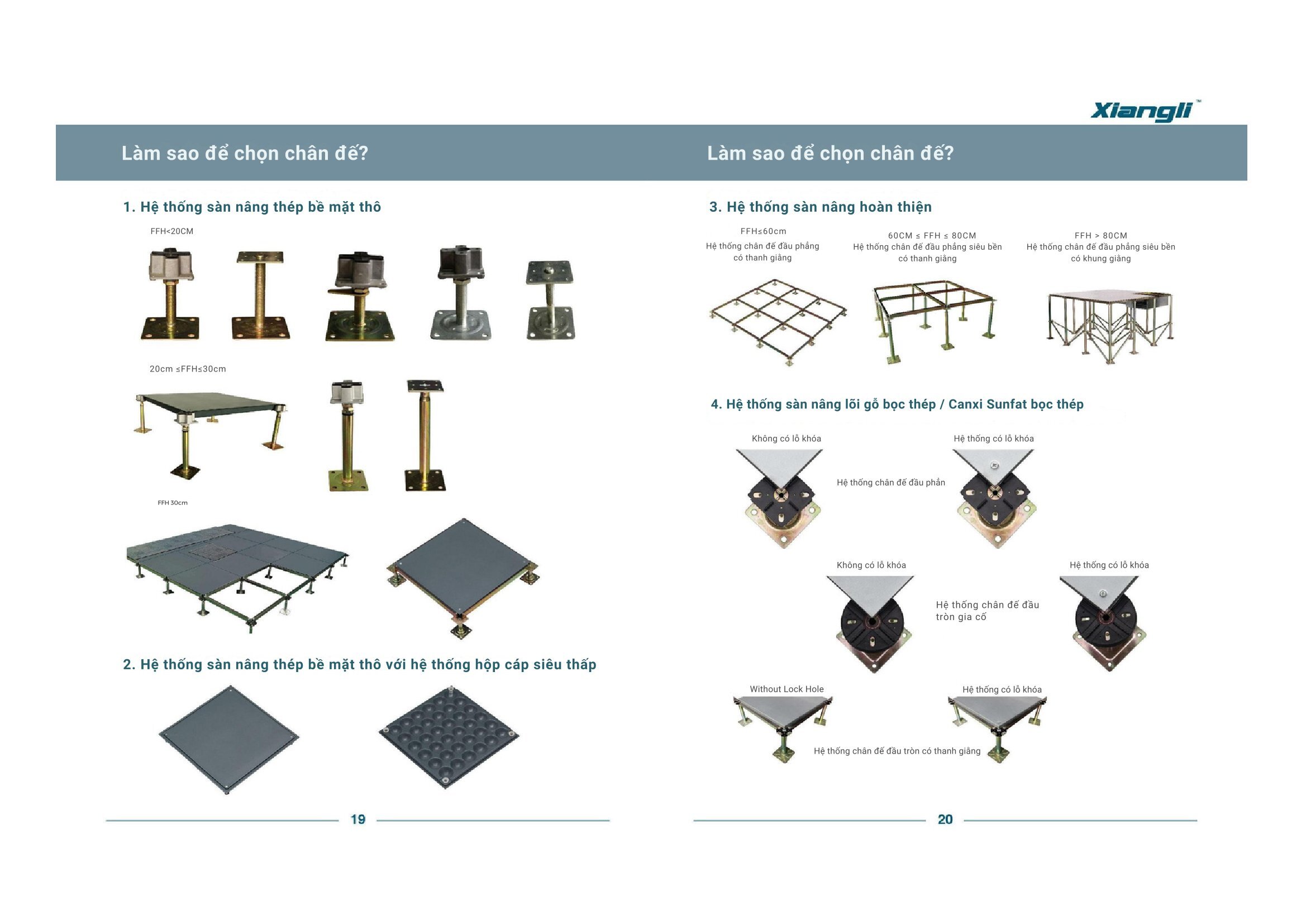

2. Pedestal

Quantity: 4 pedestals per floor panel (at the 4 corners)

Pedestal Type by Finished Floor Height (FFH):

• FFH < 20cm: Flat/round head pedestal without stringer
• 20cm ≤ FFH ≤ 30cm: Pedestal with stringer
• 30cm ≤ FFH ≤ 60cm: Flat head pedestal with stringer
• 60cm ≤ FFH ≤ 80cm: Heavy-duty pedestal with stringer
• FFH > 80cm: Super heavy-duty pedestal with frame stringer

Pedestal Model: XL001, XL002, XL003, XL004, XL005, XL006, XL007, XL008, XL009, XL010

Surface Treatment: Electroplating, hot-dip galvanizing, electrophoretic coating

3. Stringer

Quantity: 4 stringers per panel (connecting pedestals)

Features:

• Made from standard square tubes
• Treatment: Galvanized (8-12µm thickness) or painted
• Length: 500mm or 600mm (depending on panel size)
• Highest adhesion coating (grade 0)
• 72-hour salt spray test with no rust corrosion

4. Mandatory Accessories

• Gasket/Cushion: Placed on top of the pedestal, providing cushioning and vibration damping
• Adjusting Nut: For precise height adjustment of each pedestal
• Grounding Copper Sheet: Connects grounding between panels, ensuring electrical safety

5. Optional Accessories (if needed)

• Integrated Power Outlet: Models XL-G401, XL-G403, XL-G404, XL-G405, XL-G406
• Panel Lifter Tool: For removal and installation (one suction cup/two suction cups)
• Aluminum Corner Protector: For installations near walls
• Air Diffuser Unit: For air conditioning systems
• Cable Conduit: For network cable management

Advantages of Xiangli Raised Floor

1. Exclusive Technology

• Patented Cross-Rib Reinforcement
• Increases load capacity by 10-30%
• Improves flatness by 10%
• Enhances product aesthetics

2. Multifunctionality

• Anti-static: Protects electronic equipment
• Dust-proof: Specially treated surface
• Anti-slip: Safe for movement
• Anti-rust, anti-corrosion: High-quality galvanized steel
• Fire-resistant: Meets EN13501, BS476 standards

3. High Precision

• Patented design with "cross-rib reinforcement"
• Ensures high dimensional accuracy
• Precise interlocking, no gaps
• Flat surface, no warping

4. Flexibility & Easy Installation

• Adjustable Height: From 80mm to 1500mm
• Easy Disassembly: Using specialized tools
• Convenient Maintenance: Individual panel replacement
• Flexible Expansion: Easy system upgrades

5. Efficient Infrastructure Management

• Underfloor space for electrical wires, network cables
• Underfloor air conditioning systems
• Concealed technical pipelines
• Easy inspection and maintenance

Xiangli Anti-static Raised Floor Series

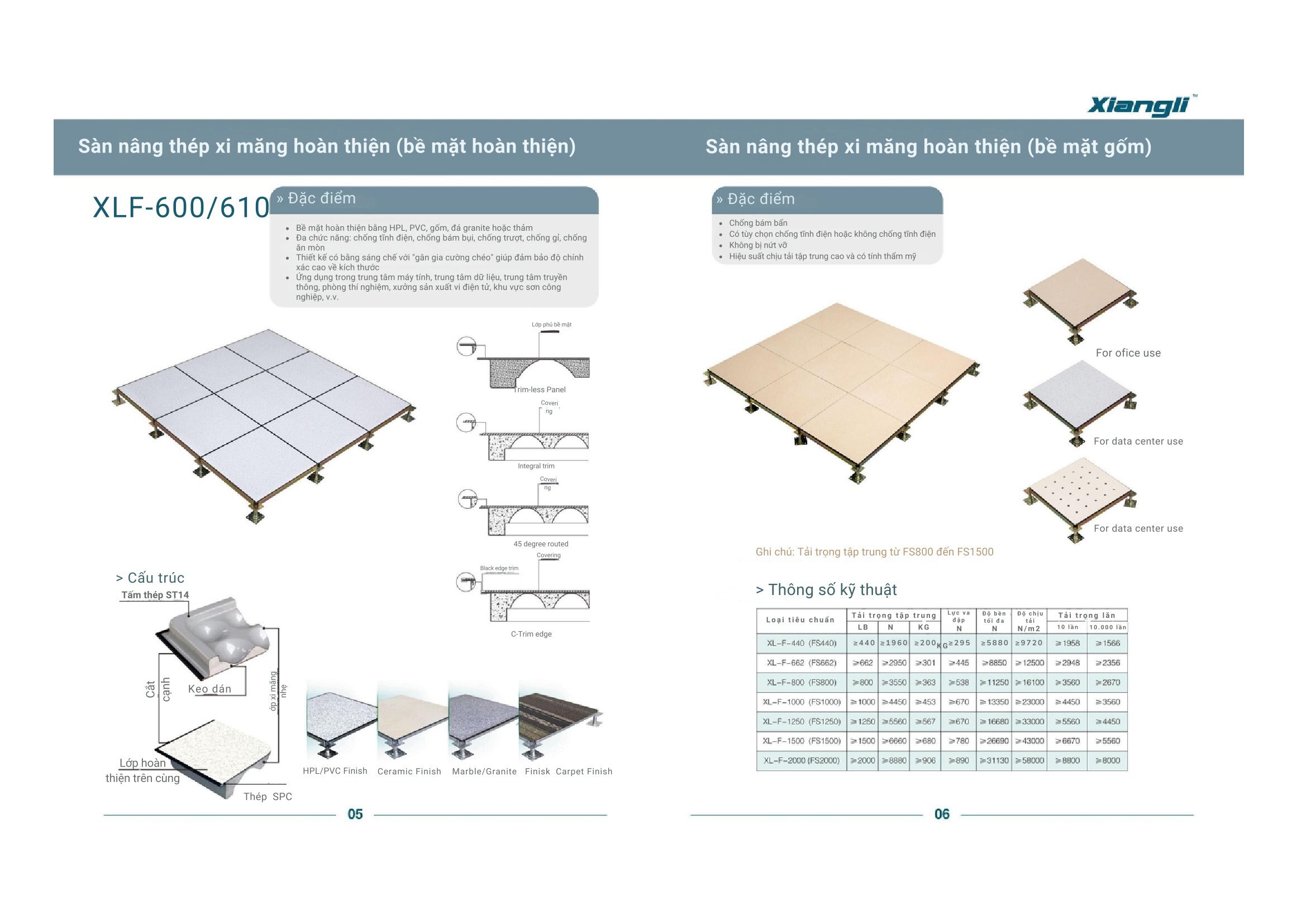

1. Cement Steel Raised Floor

Finished Surface (XLF-600/610)

• Lightweight cement core, reinforced steel frame
• Surface: HPL, PVC, ceramic, granite, carpet
• Load Capacity: FS800 – FS2000

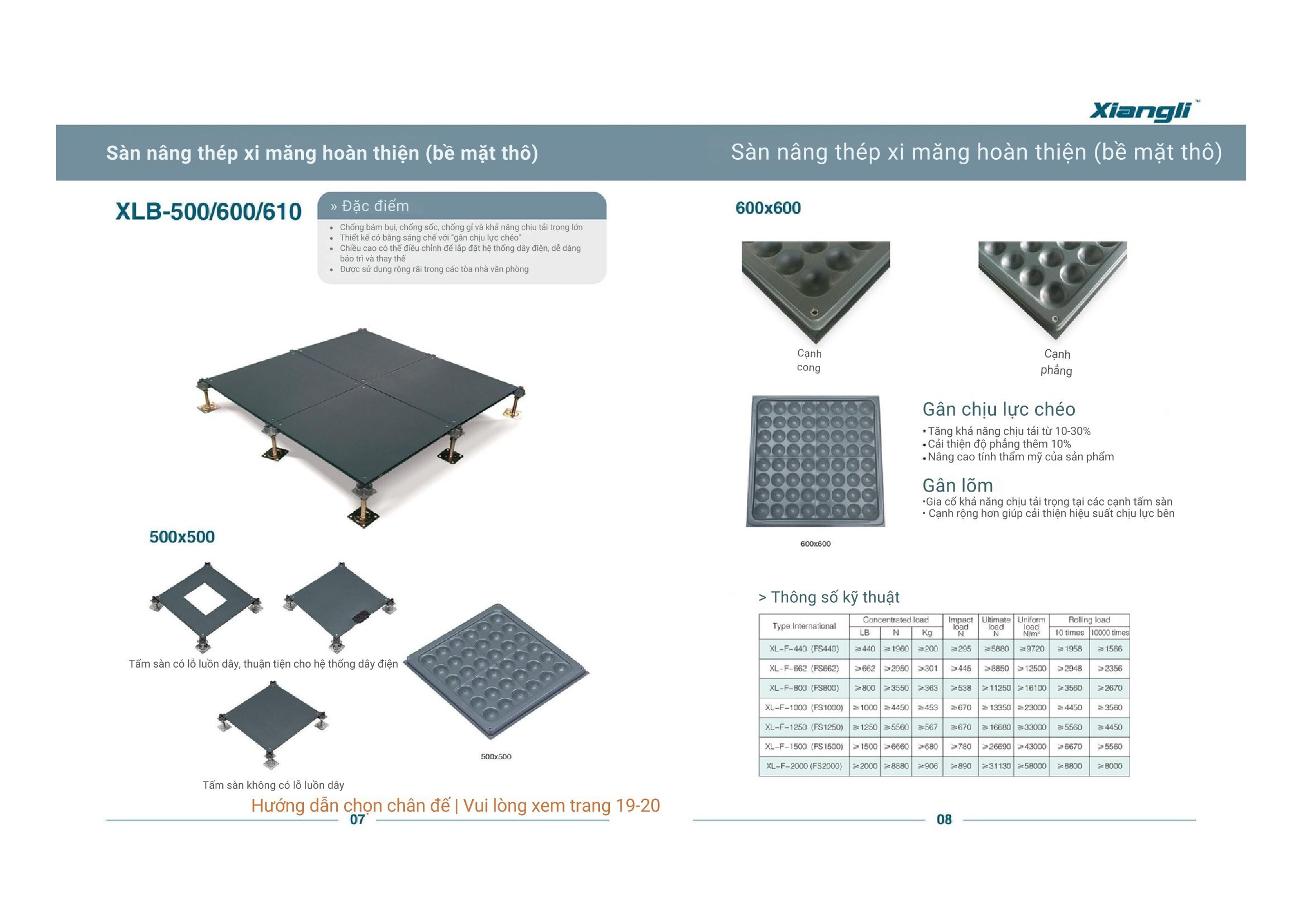

Unfinished Surface (XLB-500/600/610)

• Design with/without cable cutouts
• Exclusive cross-rib reinforcement
• Suitable for offices and industrial areas

XLF-600/610 Cement Steel Raised Floor

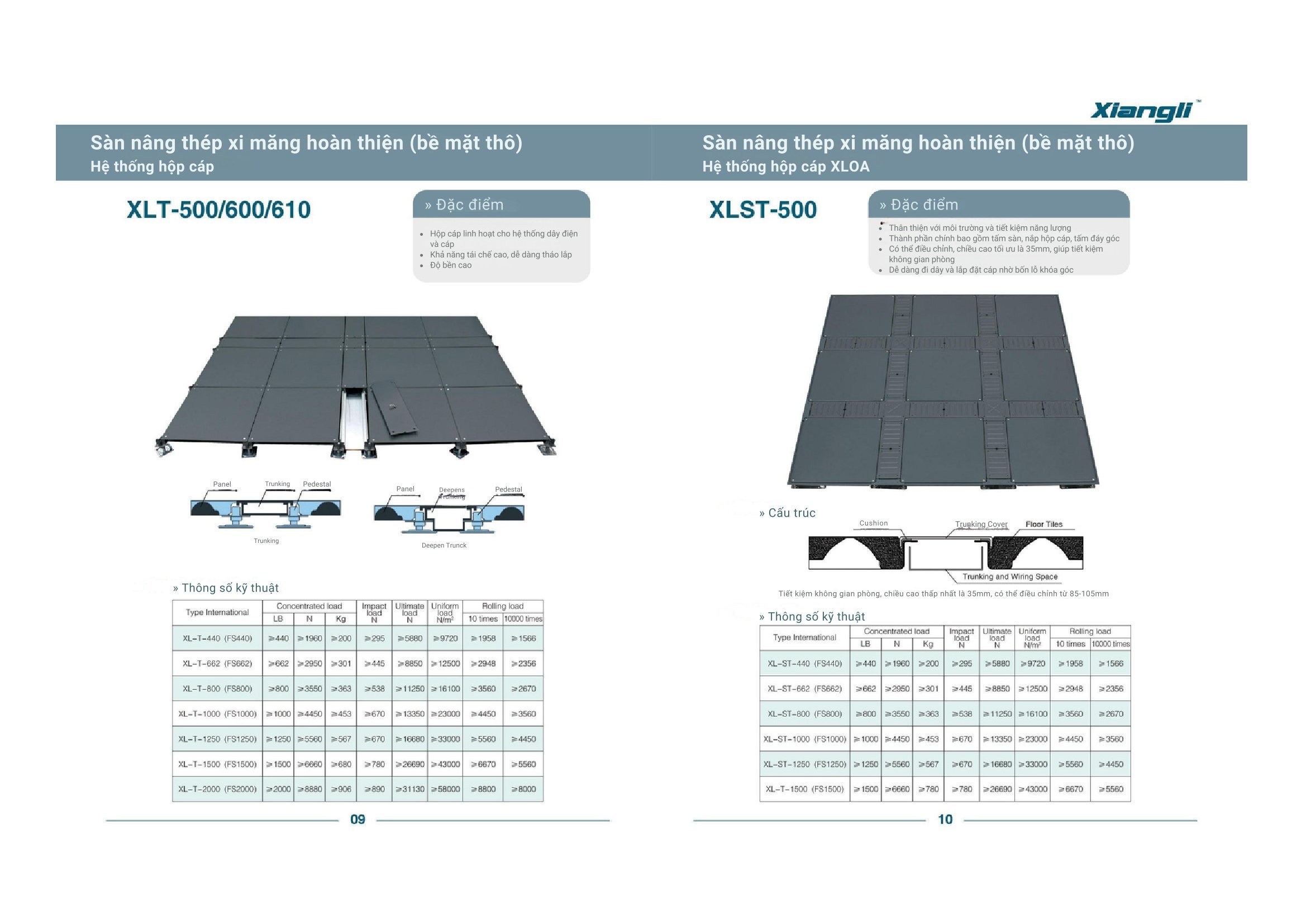

2. Cable Tray System

• Standard Cable Tray (XLT-500/600/610): space-saving, height from 85-105mm
• Ultra-low Cable Tray (XLST-500): optimized height of 35mm. Environmentally friendly, energy-saving.

Cable Tray System

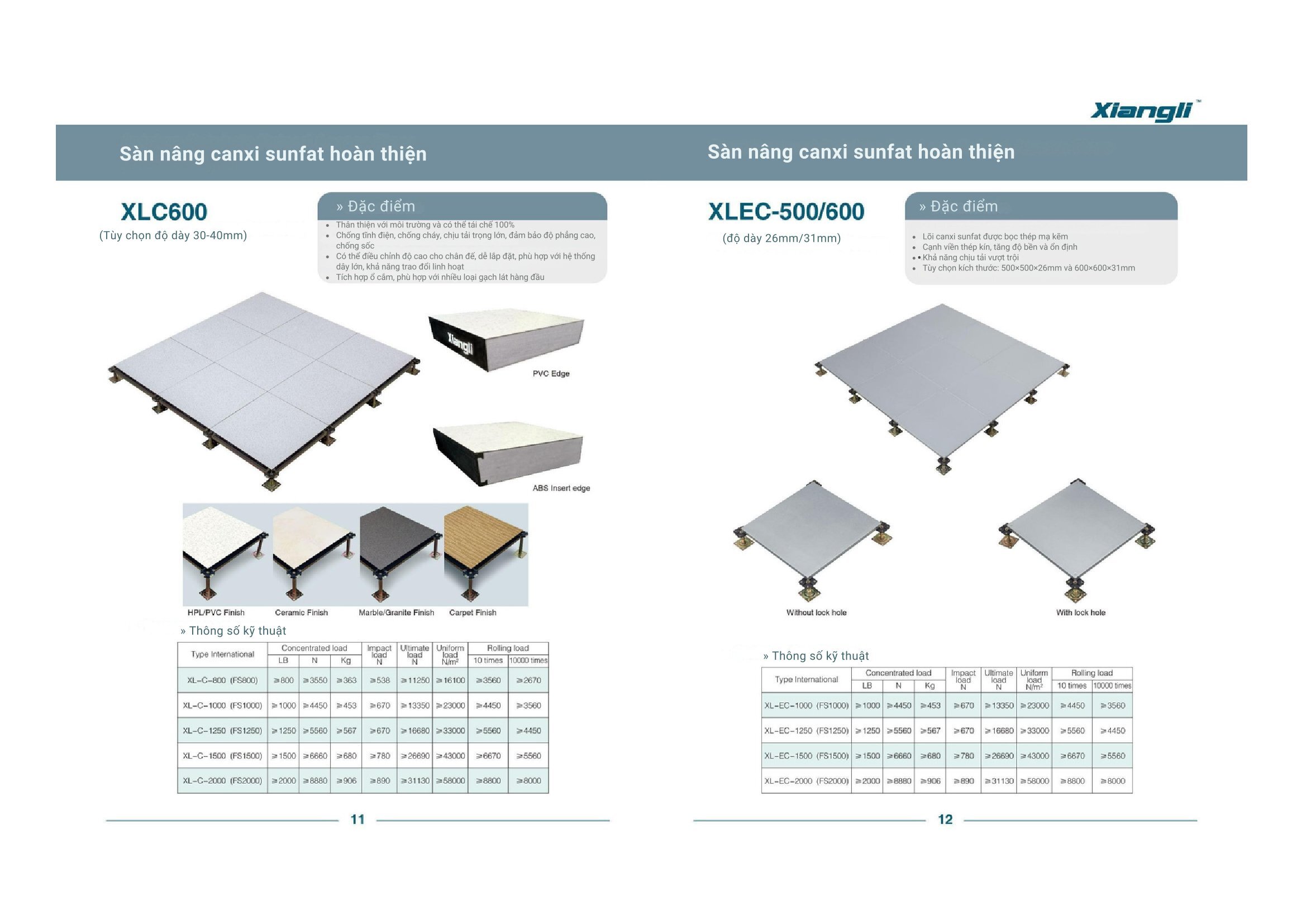

3. Calcium Sulphate Raised Floor

Finished (XLC600)

• 100% recycled, environmentally friendly
• Fire-resistant, high load capacity
• Thickness: 30-40mm

Steel Encased (XLEC-500/600)

• Calcium sulphate core encased in galvanized steel
• High durability, sealed edges
• Thickness: 26mm/31mm

Calcium Sulphate Raised Floor

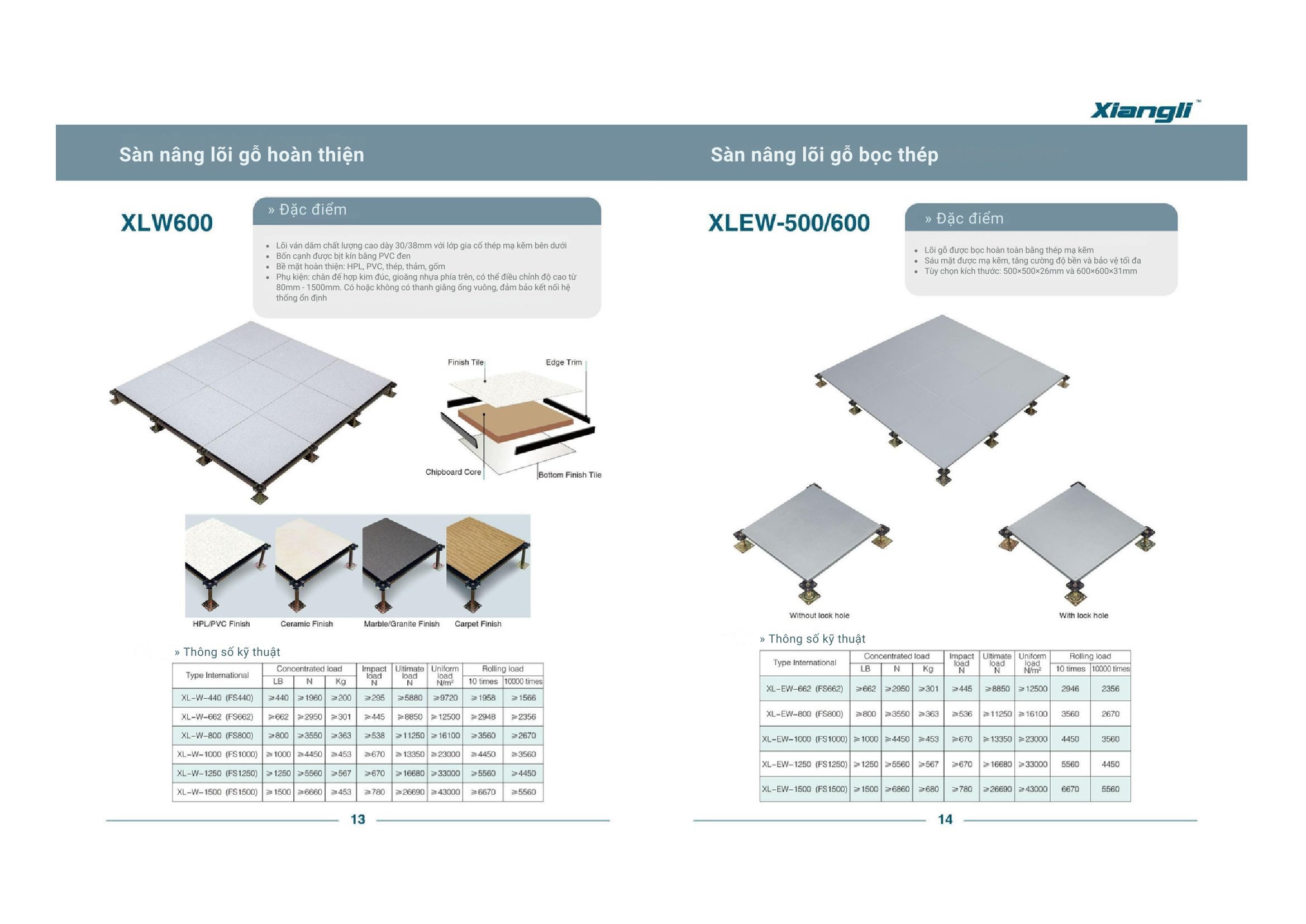

4. Wood Core Raised Floor

Finished (XLW600)

• 30/38mm particleboard core with steel reinforcement
• Surface: HPL, PVC, steel, carpet, ceramic

Steel Encased (XLEW-500/600)

• Wood core fully encased in galvanized steel
• Six-sided galvanization, maximum durability

Wood Core Raised Floor

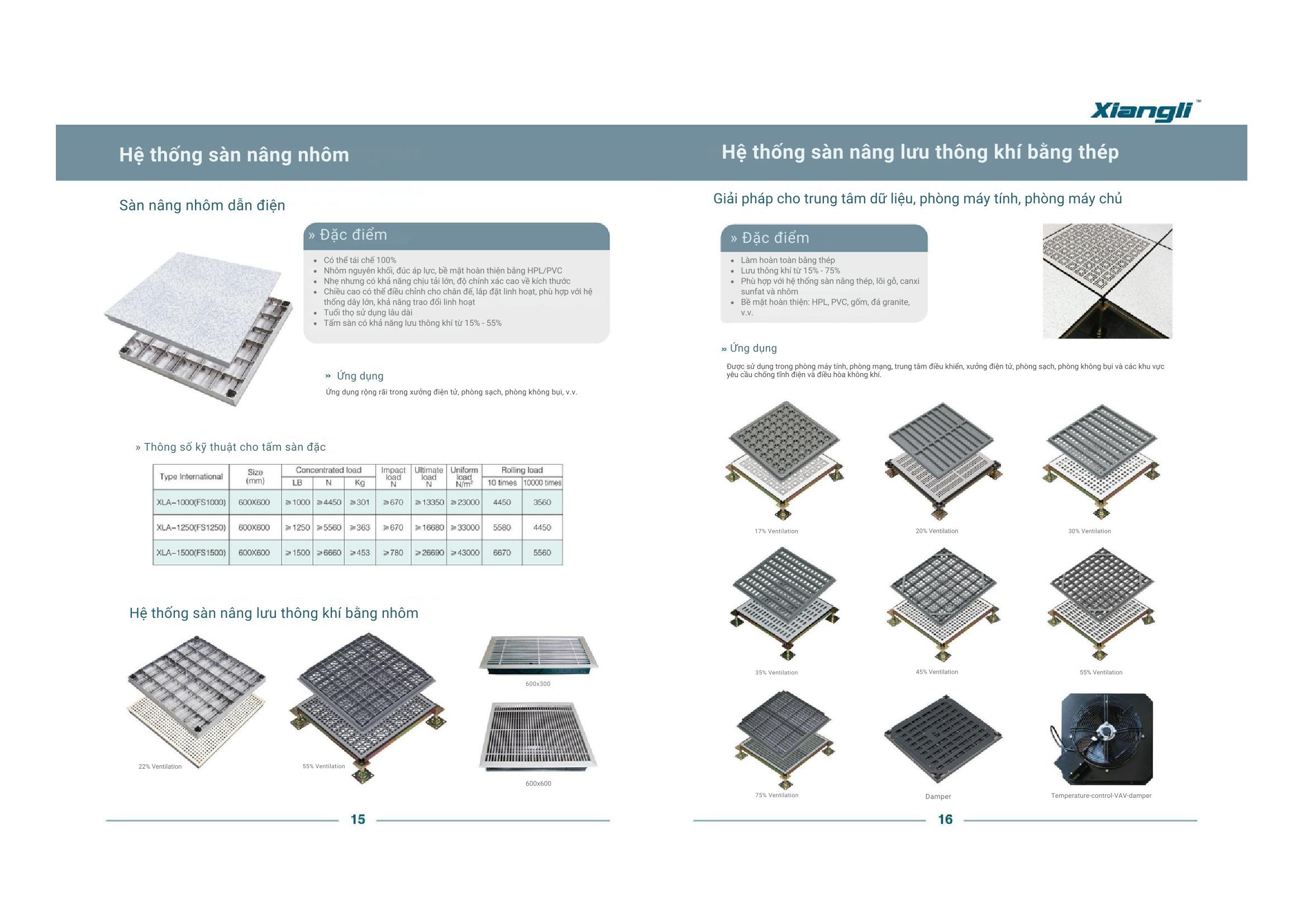

5. Aluminum Raised Floor

Solid Panel (XLA-1500 Series)

• Solid aluminum, pressure cast
• HPL/PVC surface, lightweight yet high load capacity

Ventilated Panel (15% – 55%)

• Suitable for data centers requiring cooling
• Available types: 17%, 20%, 30%, 35%, 45%, 55%

Aluminum Raised Floor System, Ventilated Raised Floor

6. Steel Airflow System

• Ventilation ratio: 15% – 75%
• Compatible with various raised floor types
• Surface: HPL, PVC, ceramic, granite

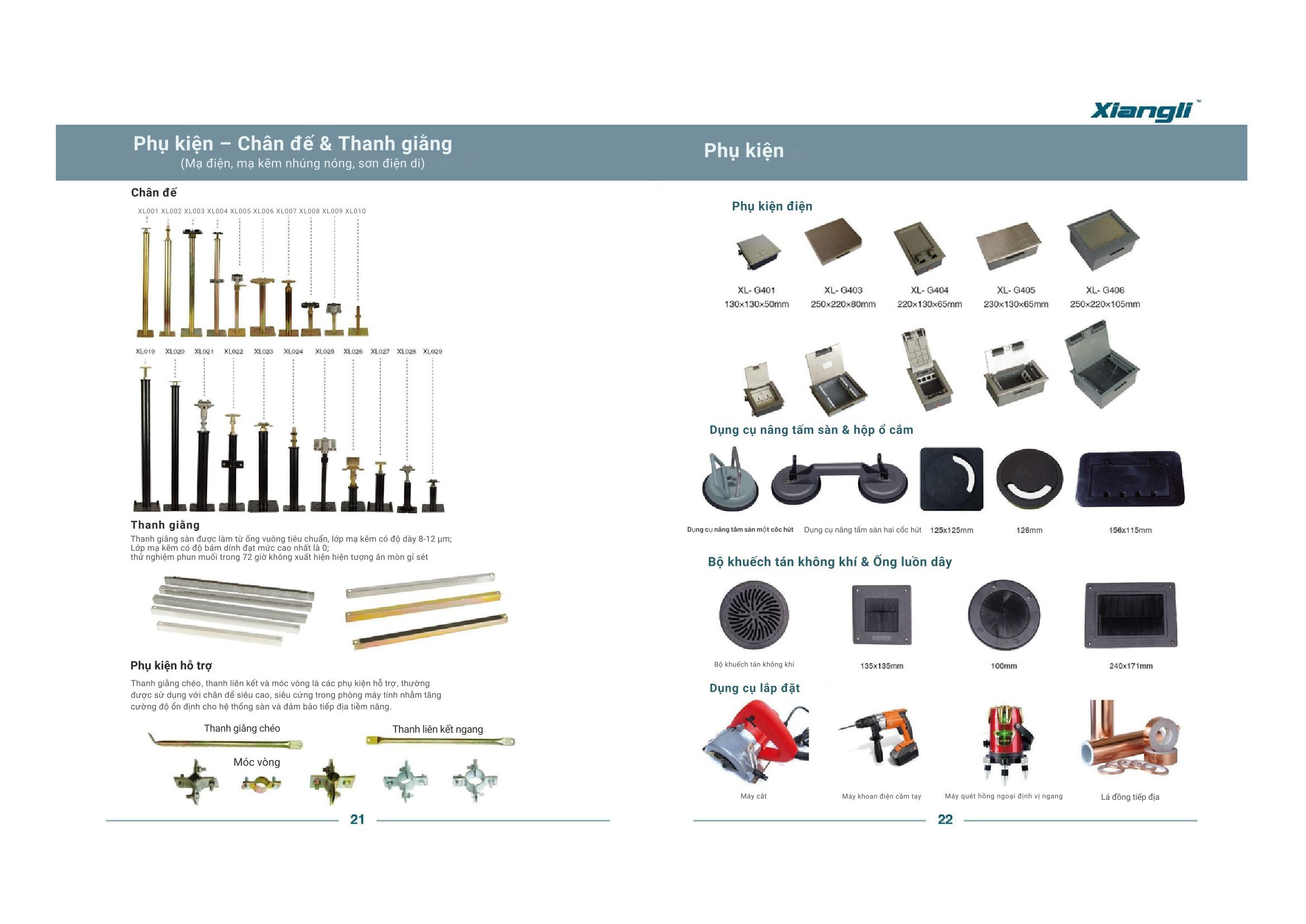

7. Accessories & Support System

• Pedestals (10 models: XL001 – XL010)
• Stringers (galvanized, electrophoretic coating)

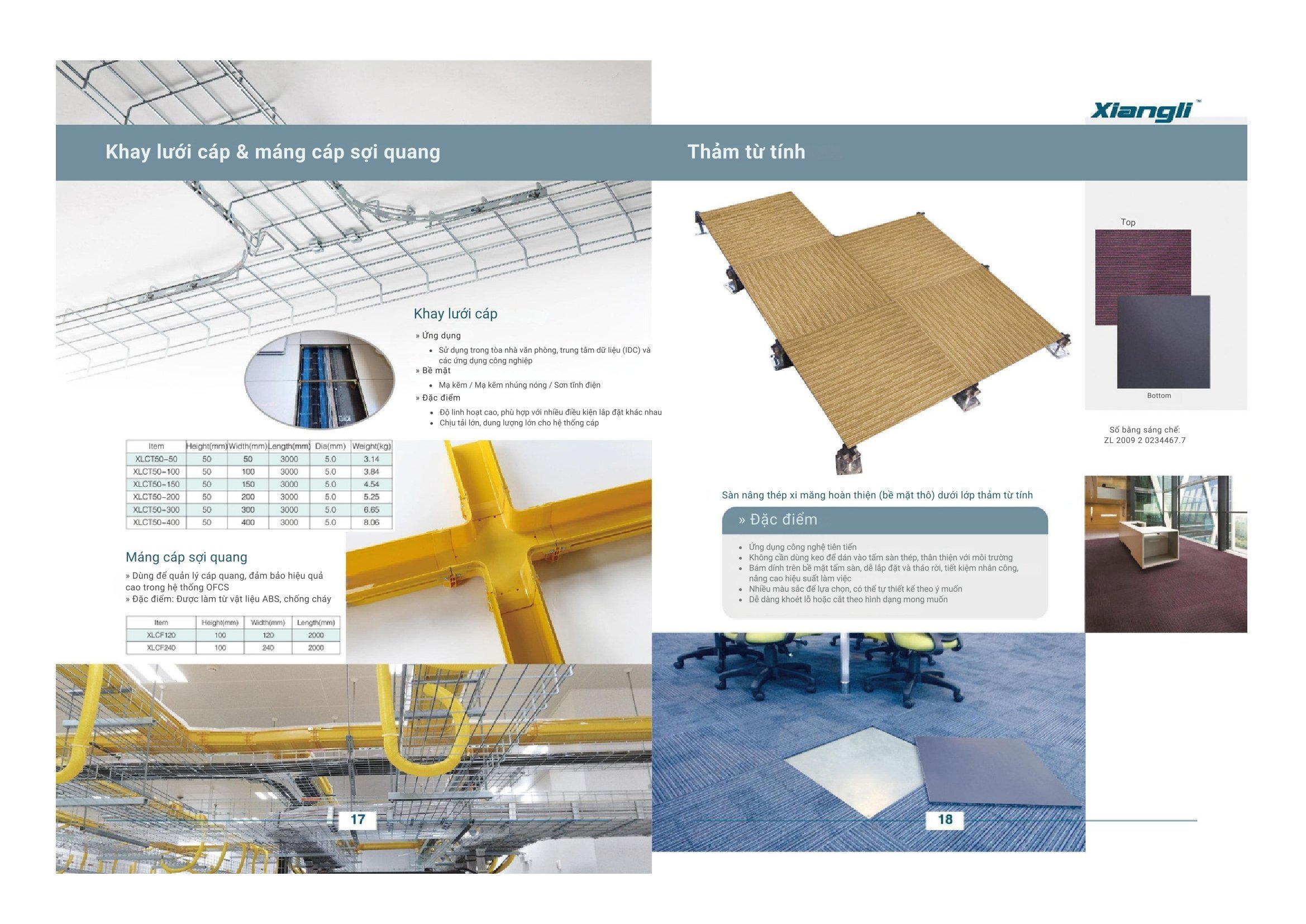

• Cable tray & fiber optic trough
• Magnetic mats
• Power outlets, installation tools

Accessories for Raised Access Floor Installation

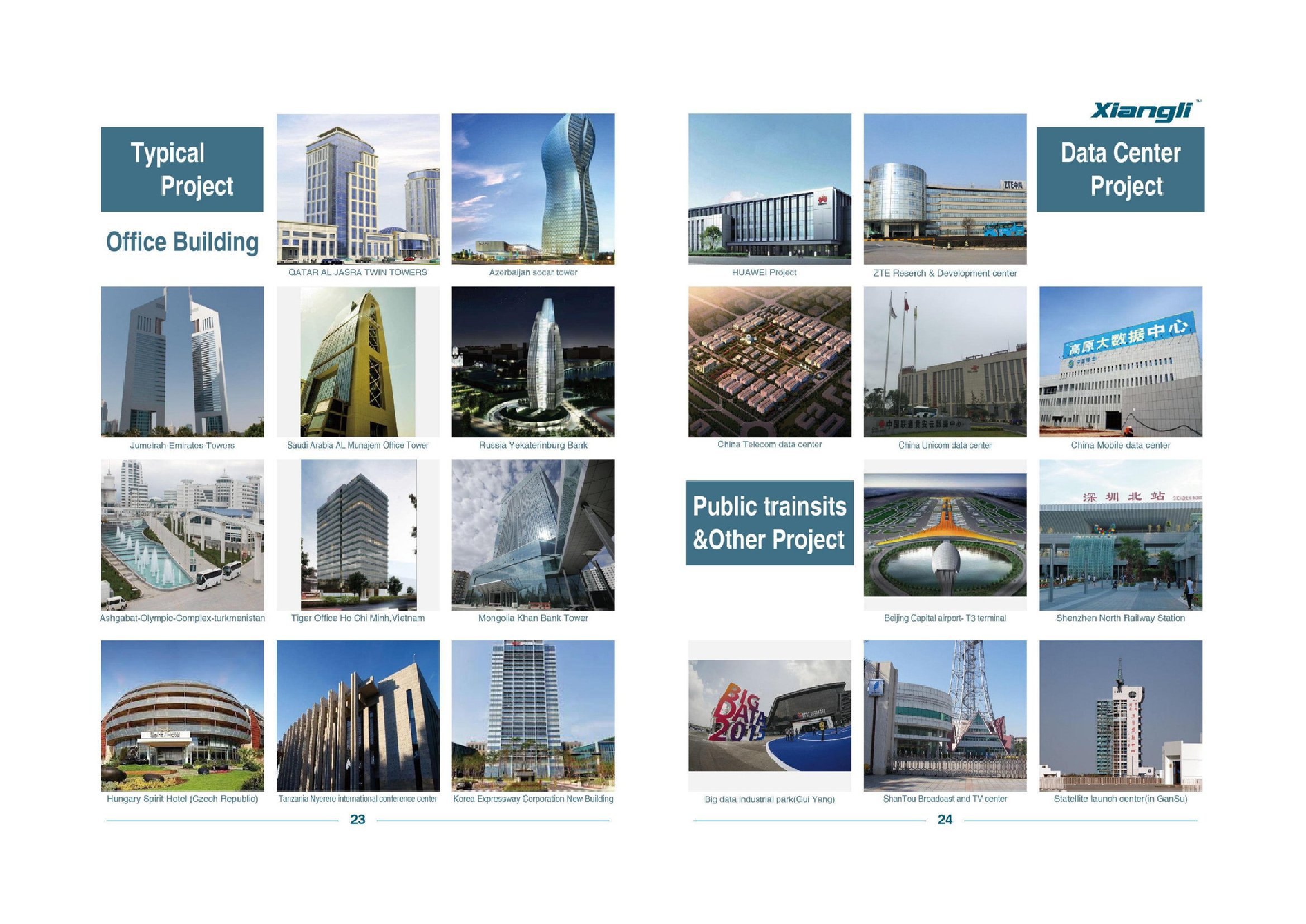

Applications of Xiangli Raised Access Floor

Xiangli Raised Access Floor is widely used in:

• Data Centers: Infrastructure management, efficient cooling, anti-static
• Server Rooms: Equipment safety, easy maintenance
• Computer Centers: Neat network cable arrangement
• Communication Centers: Complex cable management
• Office Buildings: High aesthetics, flexibility
• Laboratories: Ensuring technical standards
• Microelectronic Manufacturing Workshops: Absolute anti-static protection
• Industrial Painting Areas: Chemical resistance, easy cleaning
• Clean Rooms: Dust-free, easy sterilization

Why Choose Xiangli Raised Floor from Thien Ha Floor?

✓ 100% Genuine Products – Directly imported from Xiangli factory

✓ Full Certifications – ISO 9001 (Quality Management), ISO 14001 (Environmental Management), CE (European standard), and CISCA (Access Floor Association).

✓ Diverse Range – Over 60 product models, meeting all needs

✓ Exclusive Technology – Patented cross-rib reinforcement system enhances durability and load capacity, ensuring infrastructure safety.

✓ High Load Capacity (from FS800 to FS2000), suitable for all projects

✓ As an official dealer of Xiangli in Vietnam, Thien Ha Floor offers the best market prices and clear warranty policies.

✓ Professional Consultation – Experienced technical team

✓ Standard Installation – Long-term warranty, lifetime support

For detailed consultation and pricing for Xiangli raised access floor, please contact:

• Hotline: 0909 192 557
• Address: C3/6 Pham Hung, Binh Hung Commune, Ho Chi Minh City
• Office: 48 Street 9, HimLam Residential Area, Binh Hung Commune, Ho Chi Minh City

Thien Ha Floor – Your trusted partner for all professional raised access floor solutions in Vietnam.
